Vertical - Dock Levellers - Mechanical - MKS PND MM

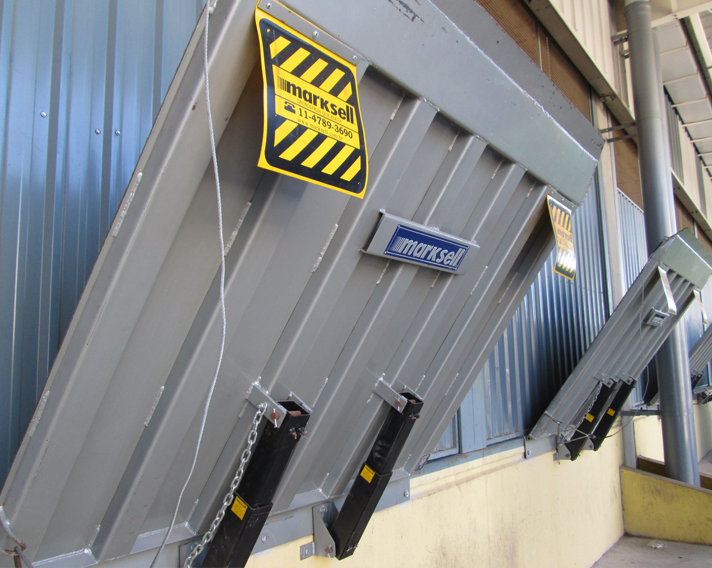

This model is for frontal installation on to the dock, fixed with screws with metal plugs. Widely used in sites in which the concrete dock has already been installed, therefore avoiding additional work in preparing the recess.
It can be operated by tilting and mechanical/manual elevating, with a steel cable system and handle; its movement is aided by a set of gas springs (cylinder actuators).
It enjoys an excellent cost/benefit ratio allowing for the speedy and safe operating of truck pallets (electrical and mechanical) or hand trucks.
You may depend on our Engineering and Commercial Departments to guide you when making the choice of the best solution for your loading and unloading problems.
Please check below the specification list of the Dock Levellers MKS PND MM.
Dynamic capacity | 5.012kg - 11.050lb |
Static capacity | 10.024kg - 22.100lb |
Length of plate | 1200mm - 3,93ft |
Width of plate | 2000mm - 6,57ft |
Dynamic capacity | 5.012kg - 11.050lb |
Static capacity | 10.024kg - 22.100lb |
Length of plate | 1700mm - 5,57ft |
Width of plate | 2000mm - 6,57ft |
Dynamic capacity | 6.803kg - 10.000lb |
Static capacity | 13.607kg - 30.000lb |
Length of plate | 2000mm - 6,57ft |
Width of plate | 2000mm - 6,57ft |
Please get in touch with our consultants to obtain more information on this solution
